Getting Started

  1. Go to Mermaid Live Editor
  2. Create or edit your chart
  3. Copy the encoded string from your browser URL, it looks like this:
    https://editor.mermaid-live.teamplay.siemens-healthineers.com/edit#pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw
  4. Paste the encoded string (e.g. pako:eNpNkM9...) after https://renderer.mermaid-live.teamplay.siemens-healthineers.com/img/
    *
    Use https://renderer.mermaid-live.teamplay.siemens-healthineers.com/svg/ if you want a SVG image.
    , for example:
    https://renderer.mermaid-live.teamplay.siemens-healthineers.com/img/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw

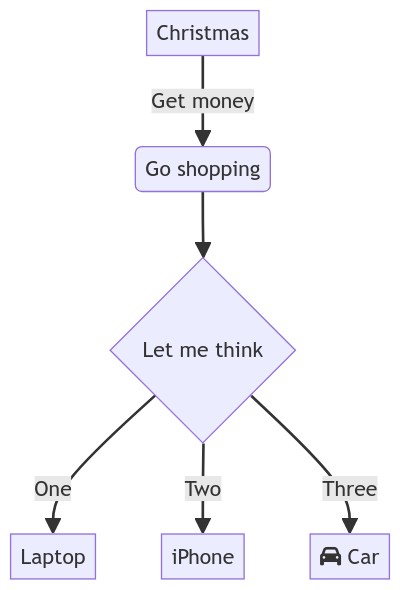

  5. Done, you could use the URL as a regular image URL:
    A mermaid.ink chart example

Image type

You may select any of the following image types for the /img endpoint by adding e.g. ?type=png:

  • jpeg (default)
  • png
  • webp

Use /svg to get an SVG image.

PDF output options

You can generate a PDF using /pdf endpoint. Add the fit URL parameter to make the PDF size fit to the diagram size. Add the paper URL parameter to set a paper size format e.g. paper=a3. Default is a4. The supported paper formats are listed here. This has no effect if using fit. Add the landscape URL parameter to make the PDF landscape. This has no effect if using fit.

Example:

https://renderer.mermaid-live.teamplay.siemens-healthineers.com/pdf/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?fit
https://renderer.mermaid-live.teamplay.siemens-healthineers.com/pdf/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?paper=a3&landscape&width=700

Background colors

Images are generated with a transparent background by default.

As mermaid diagram with light themes are barely readable on dark backgrounds (and vice-versa), it is possible to force a background color by appending the following query parameter to any /svg or /img URL: ?bgColor=<color>. The color value is interpreted as an hexadecimal color code by default, but you can also use named colors by prefixing the value with !.

Examples:

  • Add a red background using hexadecimal color: ?bgColor=FF0000
  • Add a white background using named color: ?bgColor=!white

Demo:

https://renderer.mermaid-live.teamplay.siemens-healthineers.com/svg/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?bgColor=555555
mermaid chart example with background color

Themes

You can change the theme of the diagram without modifying the diagram code. See the mermaid theme docs for details. Note that these are the built-in mermaid.js themes and not the custom mermaid live editor themes.

Current available theme options are:

  1. default - This is the default theme for all diagrams.
  2. neutral - This theme is great for black and white documents that will be printed.
  3. dark - This theme goes well with dark-colored elements or dark-mode.
  4. forest - This theme contains shades of green.

Demo:

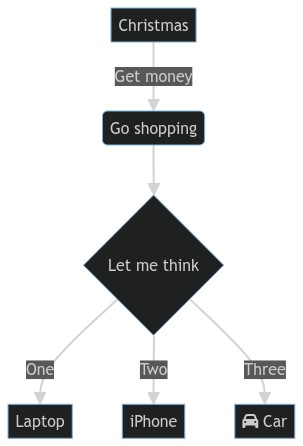

https://renderer.mermaid-live.teamplay.siemens-healthineers.com/img/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?theme=dark
A mermaid.ink chart example

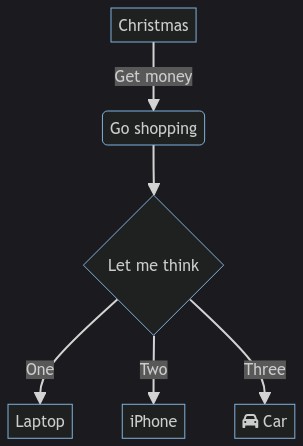

https://renderer.mermaid-live.teamplay.siemens-healthineers.com/img/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?theme=dark&bgColor=1b1b1f
A mermaid.ink chart example

Image size

You can control the image size by using width and height URL parameters. By default, without specifying width or height, the size of the image will be the normal mermaid image size.

You can scale the image by using the scale parameter. The scale must be a number between 1 and 3. You can only set a scale if one or both of width and height are set.

Demo:

https://renderer.mermaid-live.teamplay.siemens-healthineers.com/img/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?width=200
A mermaid.ink chart example
https://renderer.mermaid-live.teamplay.siemens-healthineers.com/img/pako:eNpNkM9qwzAMh19F6NRB8wI5DNak7aWwwXqLexCxUpvNf3AURkny7rNbynaTPn0_ITRjHzRjjddE0cC5VR7grWtMsqM4Gi9QVa_LkQVc8HxbYLc5BhhNiNH660uxd0WBZj4ViUGM9V9rGTT37LvnBdruRFFCvPzx809YYN_ZD5MX_-cmcU4cuoHqgaqeEjSUsqBECW7RcXJkdT55LiGFYtixwjqXmgeavkWh8mtWp6hJeK-thIS1pIm3SJOEz5vvn_3DaS3lB7gHXH8BFrFcZw?width=200&scale=2
A mermaid.ink chart example
